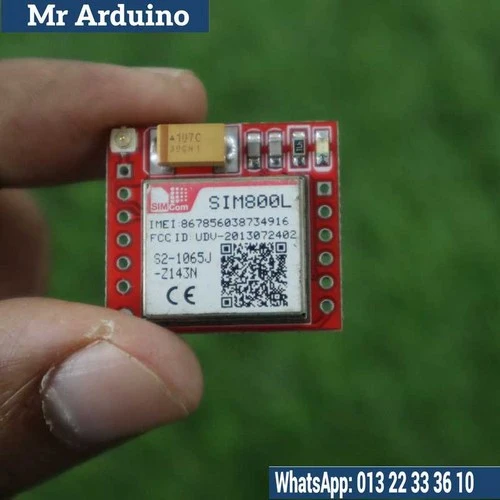

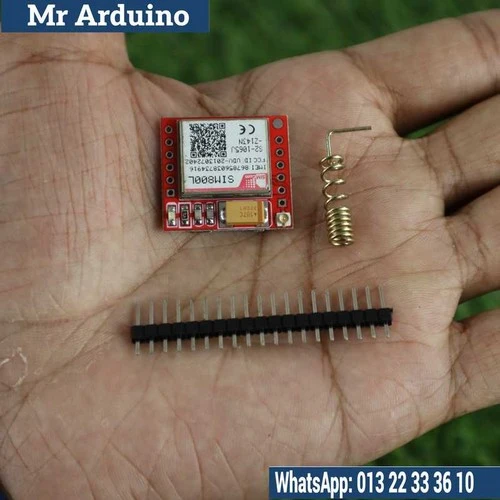

The SIM800L GSM Module is a compact and cost-effective solution for adding GSM (Global System for Mobile Communications) and GPRS (General Packet Radio Service) connectivity to your electronics projects. This module allows your microcontroller or embedded system to communicate via SMS, voice calls, and data transfer over a cellular network. With its small size and robust functionality, the SIM800L is perfect for IoT applications, remote monitoring, and any project that requires cellular communication.

Key Features:

• GSM and GPRS Connectivity: The SIM800L module supports GSM network communication and GPRS data transfer, making it ideal for applications like SMS messaging, voice calling, and internet connectivity.

• Quad-band Support: It supports four frequency bands (850 MHz, 900 MHz, 1800 MHz, and 1900 MHz), ensuring global compatibility across most cellular networks.

• SMS, Voice, and Data Communication: Allows for sending and receiving SMS messages, making voice calls, and even transmitting data over the internet (via GPRS).

• Low Power Consumption: Efficient for battery-powered applications due to its low power consumption during idle times.

• Compact Design: Small and lightweight, perfect for projects with limited space or portable devices.

• Simple Integration: Communicates with your microcontroller via serial communication (UART), making it easy to integrate with platforms like Arduino, Raspberry Pi, or ESP32.

• Antenna Interface: Includes an external antenna connector, improving signal reception for better performance.

How it Works:

1. Connect the Module: The SIM800L module is typically connected to a microcontroller via UART (TX/RX pins) or other communication protocols. Make sure the module is powered using a 3.4V to 4.4V supply, as it is sensitive to overvoltage.

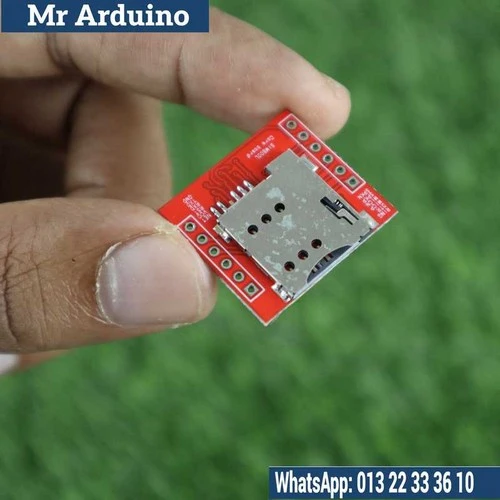

2. Insert SIM Card: Insert a GSM SIM card (preferably with an active data or text messaging plan) into the SIM card slot on the module. The module needs to register with a cellular network for communication.

3. Send Commands: You can send AT (Attention) commands to the module via the microcontroller to send and receive SMS, make calls, or even use GPRS for data communication.

4. Voice Calls and SMS: Use the AT commands to initiate voice calls, send or receive SMS messages, and process incoming call notifications.

5. GPRS Data Transmission: If the project requires internet connectivity, the module can establish a GPRS connection, allowing data transfer such as HTTP requests or FTP communication.

Applications:

• SMS Alert Systems: Perfect for projects requiring remote SMS alerts, such as temperature monitoring, security systems, or fault detection in industrial applications.

• Remote Monitoring: Used in remote systems where traditional wired internet connections are unavailable, such as agricultural monitoring, environmental sensors, or home automation.

• IoT Applications: Ideal for IoT devices that need cellular connectivity for data transmission or communication, such as smart meters, GPS tracking systems, or remote devices.

• Voice Communication Projects: Suitable for creating custom voice communication systems, such as intercoms, emergency alert systems, or even simple telephony devices.

• Embedded Communication Systems: Integrate the SIM800L into embedded devices requiring GSM connectivity for data transfer or messaging.

Limitations:

• Power Requirements: The module operates on 3.4V to 4.4V, so it may not be directly compatible with 5V systems without a voltage regulator.

• Limited GPRS Speed: While GPRS is useful for basic data communication, it is relatively slow compared to modern cellular data networks like 4G or 5G. It may not be suitable for high-speed data transfer applications.

• No Built-in Battery: The SIM800L does not include an onboard battery, so external power must be supplied during operation.

• Size: While compact, the module may be too large for extremely space-constrained applications or projects requiring microcontroller integration on a very small PCB.

The SIM800L GSM Module is a reliable and affordable solution for integrating GSM and GPRS communication into your projects. Its support for SMS, voice calls, and data transfer makes it highly versatile for remote monitoring, IoT devices, and wireless communication applications.
