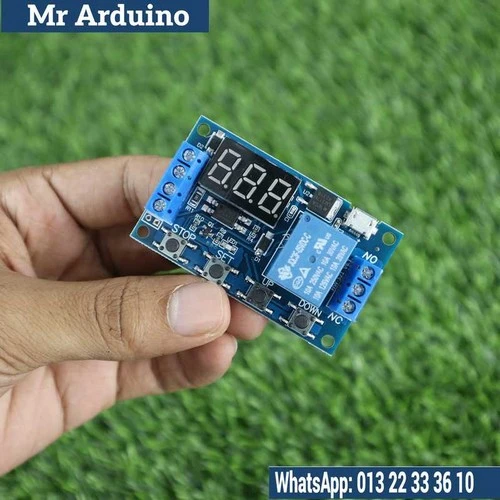

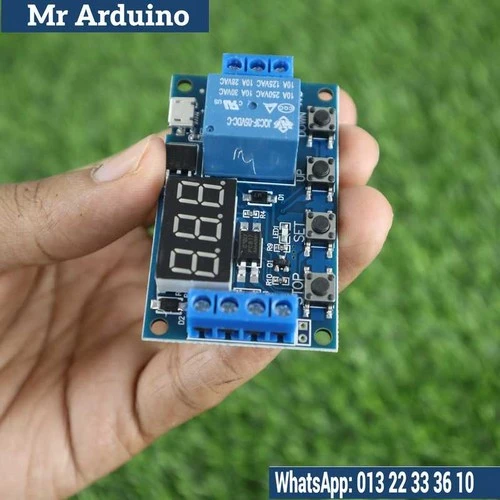

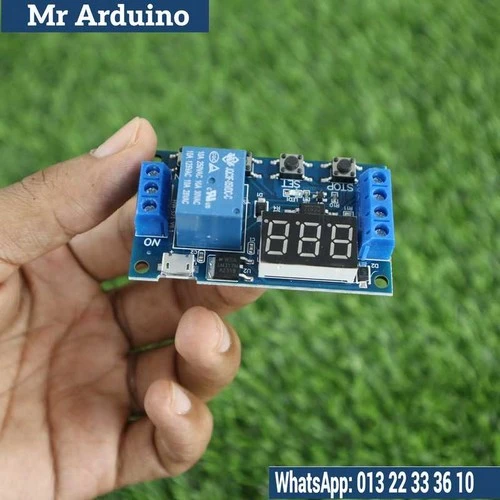

The Programmable Relay Timer Module USB Smart Home Controller is an advanced, user-friendly device designed to automate electrical systems and appliances. With its programmable timer feature, this module allows users to schedule the activation and deactivation of connected devices at specific times or intervals, making it ideal for smart home automation projects. The module comes with USB connectivity for easy programming and integration with computers or microcontrollers, enabling full control over various household appliances, lights, fans, or other electrical devices.

Key Features:

• Programmable Timer: Set custom on/off schedules for connected devices, automating their operation according to your desired time intervals, ensuring convenience and energy savings.

• USB Connectivity: Easily connect the module to a computer or microcontroller via USB for simple programming and updates. This enables seamless integration with other home automation systems.

• Relay Control: Equipped with one or more relays, the module can control high-power electrical devices such as lights, fans, and home appliances, allowing you to automate your home environment.

• Wide Voltage Compatibility: Designed to work with a variety of voltages, making it suitable for controlling devices with different voltage requirements (typically 110V or 220V AC).

• Intuitive Programming Interface: The module offers an easy-to-use software interface or application for scheduling, configuring, and controlling devices with ease.

• Multiple Applications: Perfect for smart home projects, energy management, automated lighting systems, home appliance control, and more.

• Compact Design: Its small and sleek form factor allows easy integration into any smart home system or DIY project without taking up much space.

How it Works:

1. USB Connection: The module connects to your computer or microcontroller via USB. This allows for easy configuration through a software interface where you can set the on/off time for connected devices.

2. Set Timers and Schedules: Once connected, use the software to program the timer settings. You can specify exact times or time intervals when the connected device should turn on or off automatically.

3. Relay Activation: The module uses built-in relays to control the power flow to connected devices. When the programmed time arrives, the relay is triggered, either switching the device on or off, depending on the schedule.

4. Real-time Control: Some versions of the module allow for real-time control via software, enabling you to manually override the programmed timer settings if needed.

Applications:

• Smart Home Automation: Ideal for automating household appliances such as lights, fans, coffee makers, and other devices. Schedule your lights to turn on at sunset or control the operation of heating or cooling systems based on time.

• Energy Management: Use the module to turn off devices after a certain time, reducing energy consumption and helping you manage power more efficiently.

• Home Appliances Control: Perfect for controlling the operation of home appliances such as water heaters, air conditioners, or garden irrigation systems, based on preset schedules.

• Garden and Pool Automation: Control garden lights, water pumps, or pool heaters according to a schedule for added convenience and efficiency.

• Security Systems: Can be used to automate security lights or alarms, turning them on or off at specific times, providing extra layers of protection when you're away from home.

• DIY Projects and Automation: A versatile tool for hobbyists and makers who want to create time-based control systems for various projects, such as robots, vending machines, or any device requiring scheduled operation.

Limitations:

• Limited to Relay Control: While the relay is great for switching on/off devices, the module does not offer direct dimming or speed control features. It’s purely for switching the power on or off at scheduled intervals.

• Power Limitations: The module is designed to control standard household devices, but it may not be suitable for very high-power equipment or devices with extremely high current demands, depending on the relay’s rating.

• Requires Proper Setup: Requires a computer or microcontroller to set up the schedule and programming, which could be a challenge for beginners or those unfamiliar with USB programming.

The Programmable Relay Timer Module USB Smart Home Controller is an excellent solution for automating everyday devices and appliances in your home or business. It allows for easy scheduling of electrical devices, helping you save energy and simplify your routine.

Order your Programmable Relay Timer Module USB Smart Home Controller today at www.mrarduino.com and bring intelligent automation to your home or project!
