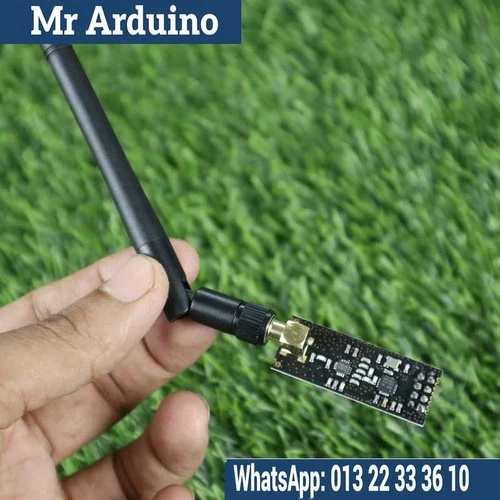

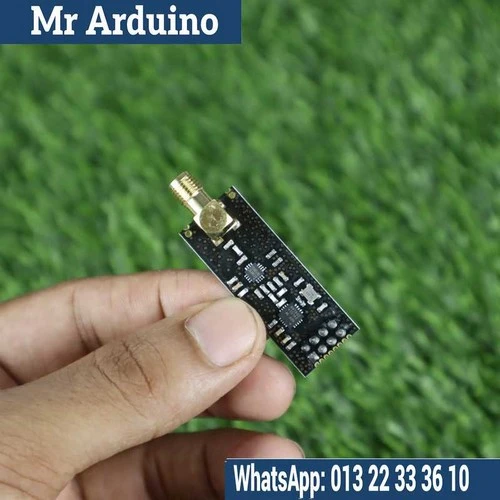

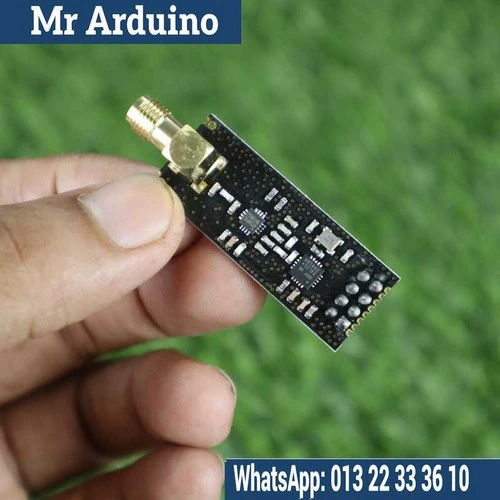

The NRF24L01 is a highly integrated, low-power 2.4GHz wireless transceiver module designed for efficient wireless communication. It is commonly used in various applications such as remote controls, sensor networks, and wireless data transmission systems. Below is a detailed description of the NRF24L01 module:

1. Key Features:

   • Frequency Range: Operates in the 2.4GHz ISM band.
   • Data Rate: Supports data rates of 250kbps, 1Mbps, and 2Mbps.
   • Modulation: Uses Gaussian Frequency Shift Keying (GFSK) modulation.
   • Power Consumption: Extremely low power consumption, with a current draw of 11.3mA in TX mode at 0dBm output power and 13.5mA in RX mode[1].

2. Pin Configuration:

   • VCC: Power supply (1.9V to 3.6V).
   • GND: Ground.
   • CE (Chip Enable): Activates the RX or TX mode.
   • CSN (Chip Select Not): Used to select the SPI bus.
   • SCK (Serial Clock): SPI clock.
   • MOSI (Master Out Slave In): SPI data input.
   • MISO (Master In Slave Out): SPI data output.
   • IRQ (Interrupt Request): Indicates data arrival[4].

3. Communication Interface:

   • SPI Interface: Utilizes SPI (Serial Peripheral Interface) for communication with microcontrollers. This allows for high-speed data exchange and easy integration with various systems[2].

4. Operating Modes:

   • Transmit Mode: Sends data to another NRF24L01 module.
   • Receive Mode: Receives data from another module.
   • Standby-I Mode: Minimal power consumption while maintaining short startup time.
   • Power Down Mode: Lowest power consumption, all features are disabled[1].

5. Applications:

   • Remote Controls: Used in wireless remote controls for toys, drones, and home automation systems.
   • Wireless Sensors: Ideal for creating wireless sensor networks for monitoring and control applications.
   • Data Communication: Used for wireless data transfer between microcontrollers and other embedded systems[3].

6. Practical Use:

   • Arduino Integration: Popular for use with Arduino for projects involving wireless communication. Libraries and example codes are widely available to facilitate easy setup and implementation[2].

The NRF24L01 module is a versatile and cost-effective solution for a wide range of wireless communication needs, offering robust performance and ease of integration.
