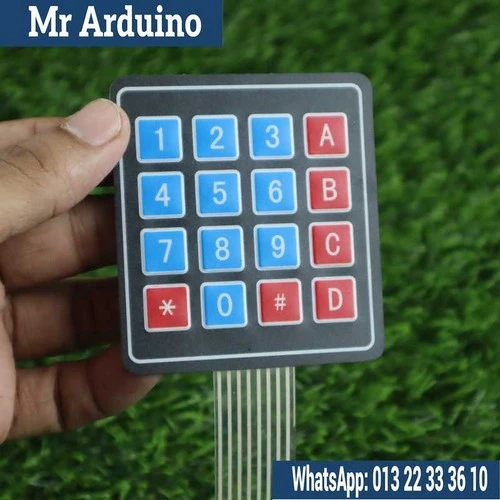

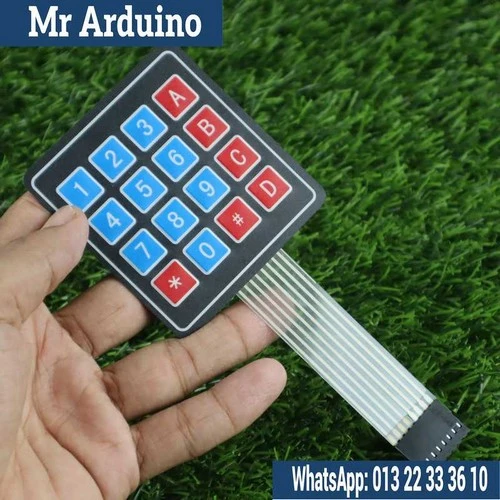

The 4x4 Keypad Module is a compact and easy-to-use interface designed to allow users to input data into their electronic systems. With 16 keys arranged in a 4-row by 4-column matrix, this keypad module provides a cost-effective solution for projects where user input is required. It is widely used in Arduino-based and other microcontroller projects for applications such as access control systems, password entry systems, or user interface designs.

How It Works: The 4x4 Keypad Module operates using a matrix of switches. It has 4 rows and 4 columns, creating a total of 16 keys. When a key is pressed, it connects a specific row and column, which is detected by the microcontroller. The microcontroller scans the rows and columns to determine which key is pressed by checking the shorted connections. It then outputs the corresponding key's value.

This keypad module typically communicates with the microcontroller via a digital I/O interface, using libraries like the Keypad library in Arduino, which simplifies the detection of keypresses.

Key Features:

• 16 Key Matrix: A 4x4 grid of keys, allowing for a larger selection of inputs (numbers, letters, or custom characters).
• Compact and Easy to Integrate: Small size makes it easy to integrate into a variety of projects.
• Durable Design: Designed for longevity, the buttons are built to withstand repeated use.
• Low Power Consumption: The keypad operates with very low power, making it suitable for battery-operated projects.

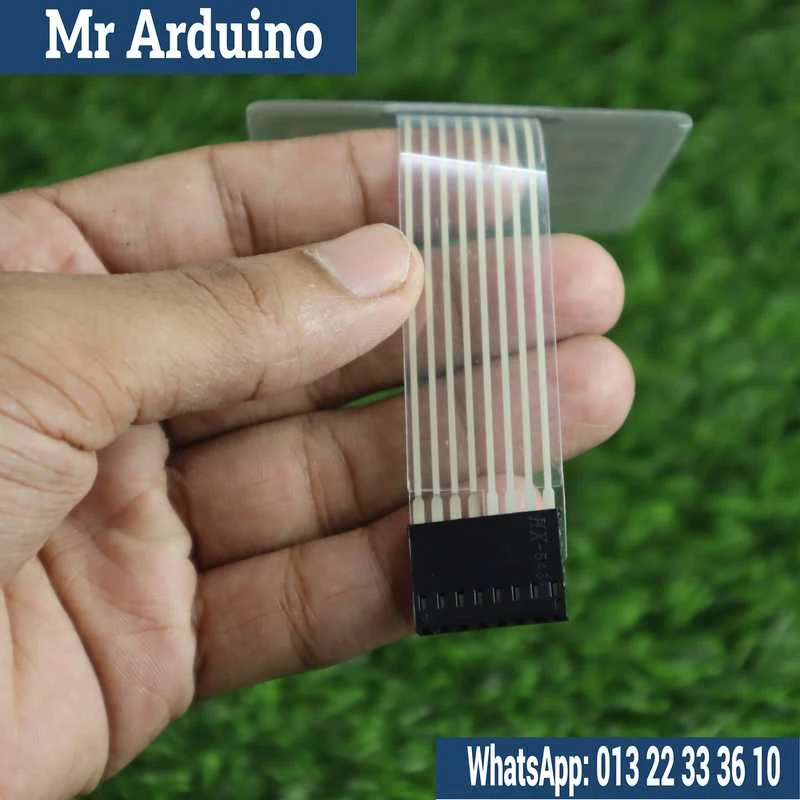

• Simple Interface: Typically connected using just 8 pins (4 rows + 4 columns), simplifying wiring and connections.
• Wide Compatibility: Compatible with most microcontrollers, such as Arduino, Raspberry Pi, and ESP32.

Specifications:

• Rows and Columns: 4 rows and 4 columns (16 keys total).
• Operating Voltage: 3.3V to 5V (works with common microcontrollers like Arduino).
• Material: The module is typically made with durable, high-quality materials for longevity.
• Output Type: Digital (pressing a key will send a signal to the microcontroller).
• Connection Type: Direct I/O pins or through a shift register (depends on your wiring configuration).
• Button Life: Rated for thousands of presses, offering reliability for prolonged use.
• Keypad Size: Approx. 6.5 x 6.5 cm (depends on the specific model).

Limitations:

• Limited to 16 Keys: While useful, the 4x4 keypad is limited in terms of the number of keys that can be pressed at a time (single-key presses only).
• Not Ideal for Long-Term Use in Harsh Conditions: The keys may wear out if subjected to heavy usage or harsh environments, such as extreme temperatures or exposure to moisture.
• Requires Library Support: For ease of use, you must integrate it with appropriate libraries (like the Keypad library in Arduino), which might add complexity for beginners.

The 4x4 Keypad Module is an excellent choice for anyone working on interactive systems where user input is necessary. It’s ideal for applications in access control, alarm systems, security projects, or even simple user interfaces in Arduino-based electronics. Its compact design and ease of use make it a versatile addition to any project.
