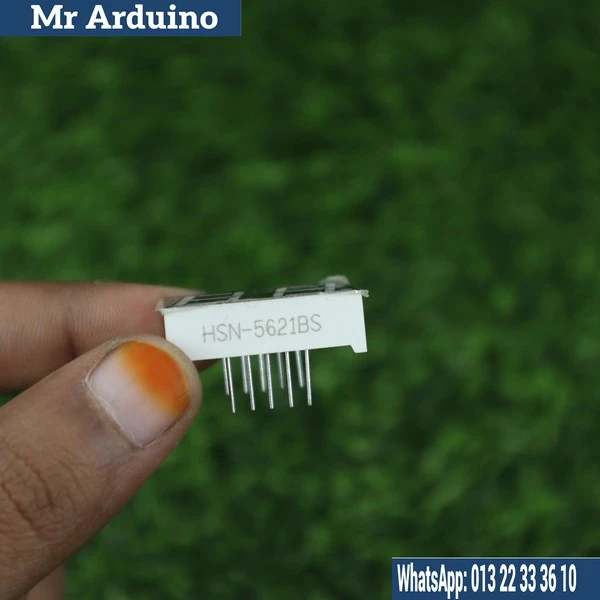

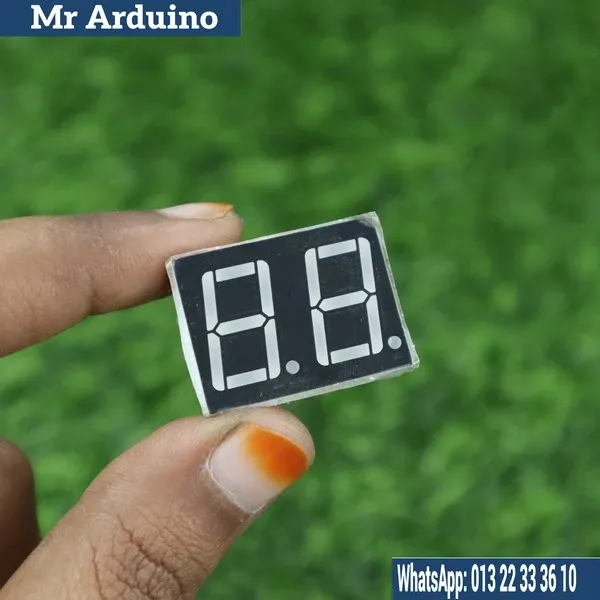

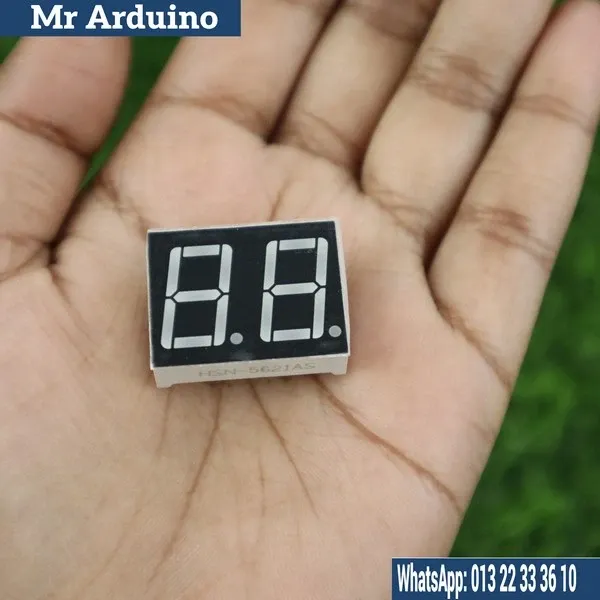

The 7 Segment 2 Digit 5621BS CA is a dual-digit 7-segment display used to visually display numerical values in various electronic applications. It consists of two 7-segment displays, allowing it to show a two-digit number (ranging from 00 to 99). The 5621BS CA model is typically used in digital clocks, counters, temperature displays, voltage meters, and other devices that require numeric output.

Features:

• Two Digits: Displays two numerical digits, from 00 to 99.

• 7 Segment Configuration: Each digit is made up of 7 individual segments that can be lit in different combinations to represent digits from 0 to 9.

• Common Anode: The 5621BS CA is a common anode type display, meaning that the anode (positive) pin is shared by both digits, and each segment is connected to a cathode (negative) pin that turns on the segment when connected to ground.

• Compact Design: Small and lightweight, suitable for tight spaces in digital readouts or instrumentation.

• High Brightness: Typically features bright LED segments, ensuring clear visibility in both low-light and brightly lit environments.

• Low Power Consumption: Efficient in power usage, making it ideal for battery-powered or energy-efficient applications.

How It Works:

The 7 Segment 2 Digit 5621BS CA operates using LED segments that are arranged in the shape of a figure-eight to display numeric characters. Each segment of the 7-segment display can be turned on or off to form any of the numbers from 0 to 9. The display is a common anode type, meaning that the common pin is connected to the positive voltage, and individual segments are activated by pulling their cathodes to ground.

1. Powering the Display: The common anode pin is connected to a positive voltage (usually 5V). Each of the seven segments has its own pin that can be grounded to light up the individual segments.

2. Displaying Numbers: By grounding the correct segments for each digit, the display will show the corresponding number. For example:

   • To display "1", only the two segments on the right are lit.

   • To display "8", all seven segments are lit.

3. Switching Between Digits: The two digits are usually multiplexed in time, meaning that the display alternates quickly between the two digits, creating the illusion of a stable two-digit number being shown.

Product Limitations:

• Common Anode Configuration: Since the 5621BS CA is a common anode display, it is not compatible with common cathode control circuits without modification. Ensure that your driving circuitry is compatible with the common anode configuration.

• Brightness: Although the display is typically bright, the visibility might be reduced under direct sunlight or high ambient light conditions. Using proper current-limiting resistors and controlling the driving current can help optimize brightness.

• Current Limitation: The display's segments are powered by current-limiting resistors to avoid damaging the LEDs. Ensure that the appropriate current is used to prevent overheating or premature failure.

Applications:

• Digital Clocks: Commonly used in digital clocks and time display systems where two-digit values (such as hours or minutes) need to be shown.

• Counters: Ideal for use in counters that require the display of numbers in applications such as industrial control systems or measuring devices.

• Measurement Displays: Used in voltage meters, thermometers, or other measurement instruments to display numerical data.

• Home Appliances: Found in appliances like microwave ovens, washing machines, and other electronics that display numeric values.

• Toys and Gadgets: Often used in digital readouts in toys, gadgets, or DIY electronics projects.

The 7 Segment 2 Digit 5621BS CA display offers a clear, simple, and efficient way to display numbers in various electronic and electrical applications. Its common anode configuration, compact size, and bright LED segments make it a versatile choice for a wide range of digital display needs.
