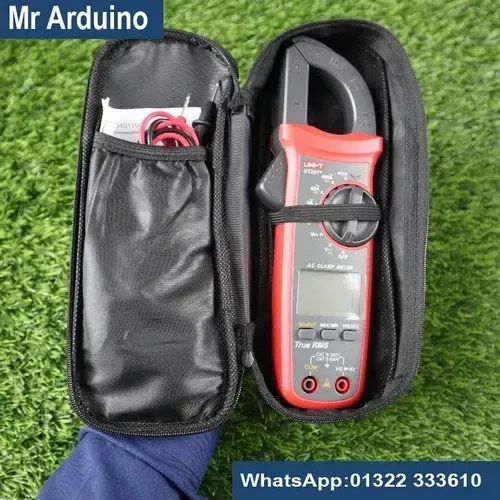

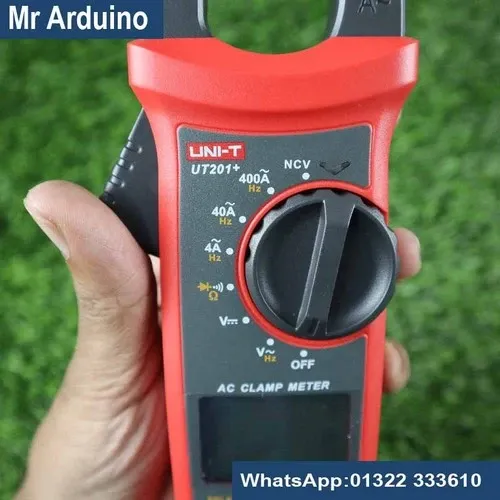

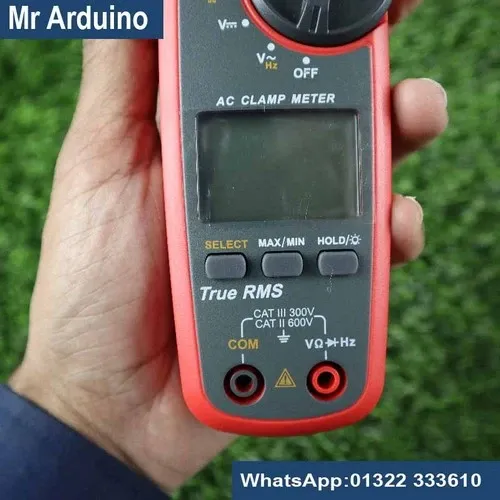

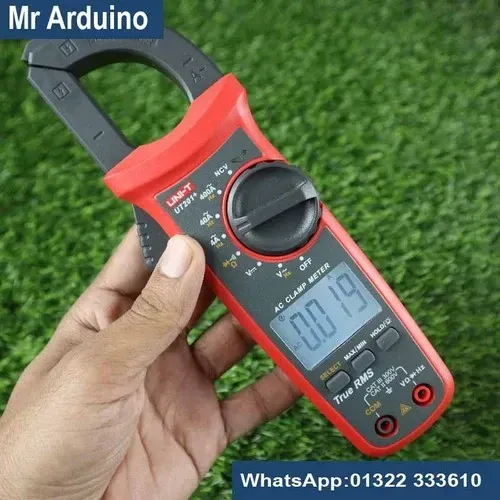

UNI-T UT201+ True RMS Digital Clamp Meter

3 Orders 3 Wish listed

৳2,650

Qty

Total price:

৳2,650

Overview
Reviews

Detail Description

Features:

Functions:
- AC current;
- AC/DC voltage;
- resistance;
- continuity test;
- diode test.
True RMS measurement.
Audio visual NCV detection.
Large LCD.
Full-featured false detection protection for up to 600 V energy surges; overvoltage and overcurrent alarm functions.
The power consumption of the meter is about 1.8 mA. The circuit has an automatic power saving function. The consumption in sleep state is <11 μA, which extends the battery life to 400 hours.
Low battery indication.
Automatic power of after 15 of no-operation (function can be turned off).
Data hold function.
Max/Min mode.

Technical Specifications:

Function	Range	Accuracy
AC Current	4 A	±(4%+10)
AC Current	40 A / 400 A	±(2%+10)
AC Voltage	4 V	±(1%+5)
AC Voltage	40 V / 400 V / 600 V	±(0.8%+5)
DC Voltage	400 mV	±(0.7%+3)
	4 V	±(0.5%+2)
	40 V / 400 V / 600 V	±(0.7%+3)
Resistance	400 Ω	±(1%+2)
	4 kΩ / 40 kΩ / 400 kΩ	±(0.8%+2)
	4 MΩ / 40 MΩ	±(2%+5)
General Specifications
Display	4099 count LCD
Max. jaw opening	28 mm in diameter
Drop test	1 m
Power	1.5V battery AAA × 2 pcs.
Dimensions	215 × 63.5 × 36 mm
Weight	248 g (with batteries)
