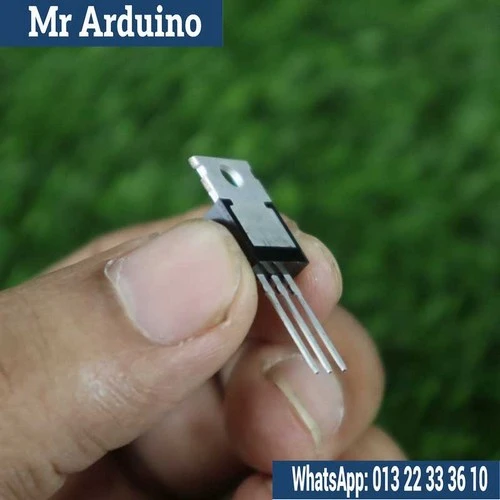

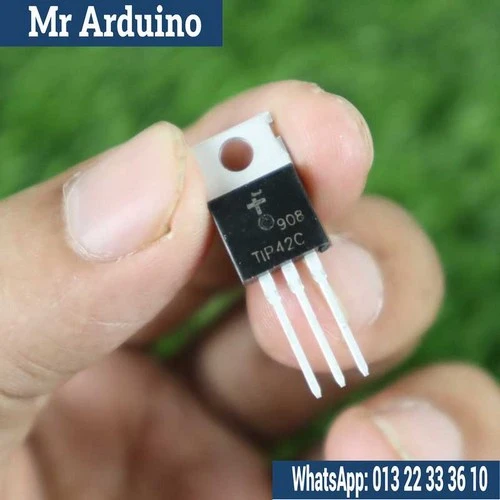

The TIP 42C is a high-power PNP Bipolar Junction Transistor (BJT), designed for switching and amplification applications. It is commonly used in power electronics, automotive, and general-purpose circuits where medium to high current is needed. The TIP 42C is designed for use in both low- and high-power circuits, making it an excellent choice for motor control, power switching, and other similar applications.

How It Works: The TIP 42C is a PNP transistor, meaning the majority charge carriers are holes. When a small current is supplied to the base terminal, it controls the flow of current from the emitter to the collector. When the base-emitter junction is forward biased (i.e., base voltage is lower than emitter voltage), the transistor allows current to flow from the emitter to the collector, acting as a switch or amplifier.

• For Switching Applications: When the base current is sufficiently applied, the transistor turns "on," allowing a large current to flow between the collector and emitter. When no base current is applied, the transistor is "off," and no current flows through the collector-emitter path.

• For Amplification Applications: The TIP 42C can amplify small signals. It is commonly used to amplify audio signals or weak signals in various electronic devices.

Key Features:

• PNP Type Transistor: Ideal for circuits where negative voltages are required, or in a PNP configuration.
• High Current Handling: Can handle up to 6A of continuous current, making it suitable for power electronics and motor control.
• High Voltage Rating: Rated for up to 100V, allowing it to be used in a wide range of high-voltage applications.
• Good Gain: High current gain (hFE), which means it is efficient for amplifying signals.
• Thermal Stability: Equipped with a built-in heat sink to dissipate power and ensure stable performance under high loads.
• Versatile Applications: Works in both analog and digital circuits, commonly used in amplifiers, power switching, and motor drive circuits.

Specifications:

• Type: PNP Bipolar Junction Transistor (BJT)
• Collector-Emitter Voltage (Vceo): 100V
• Collector Current (Ic): 6A (continuous)
• Power Dissipation: 40W
• DC Current Gain (hFE): 40 to 320 (depending on the model)
• Package: TO-220 (through-hole mount)
• Operating Temperature Range: -65°C to 150°C
• Base-Emitter Voltage (Vbe): 5V max.
• Collector-Emitter Saturation Voltage (Vce(sat)): 2V max.

Limitations:

• Saturation Voltage: While effective, the Vce(sat) is around 2V, which may result in power loss when the transistor is in the "on" state.
• Current Limitation: While it can handle up to 6A, this is the maximum continuous current. Exceeding this limit can damage the transistor.
• Power Dissipation: It requires a heat sink for efficient operation at higher power levels, and inadequate cooling can cause thermal runaway.

The TIP 42C PNP BJT Transistor is perfect for applications where high current switching or amplification is required. Whether you're working on motor control, power regulation, or audio amplification, this versatile and reliable transistor is a great choice for your projects that require robust performance and high power handling.
