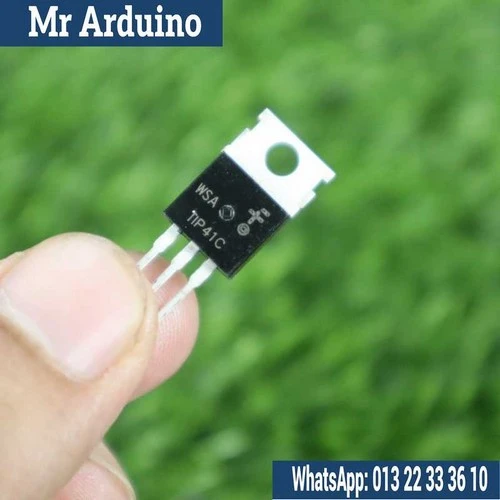

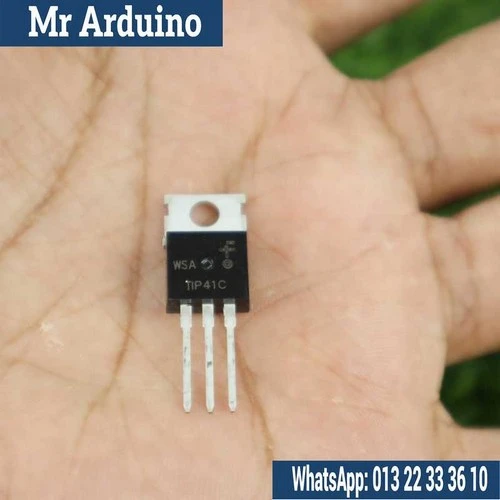

The TIP 41C is a NPN Bipolar Junction Transistor (BJT) designed for high-power switching and amplification applications. It is ideal for use in power electronics, signal amplification, and motor control circuits. The TIP 41C is commonly used in a variety of projects that require high current handling and voltage stability. This transistor is known for its robust construction and versatility in both low- and high-power applications.

How It Works: The TIP 41C is an NPN transistor, meaning it has a layer of N-type material between two P-type layers. When a small current is applied to the base of the transistor, it allows a much larger current to flow from the collector to the emitter (from the N-type material to the P-type material). This characteristic makes the TIP 41C useful for switching and amplification tasks:

• Switching: When the base-emitter junction is forward biased (i.e., the base voltage is higher than the emitter), the transistor switches on, allowing a larger current to flow between the collector and emitter.

• Amplification: The TIP 41C can amplify weak signals. For instance, it can be used to drive a load (like a motor or speaker) with a higher current than the base current, providing signal amplification.

Key Features:

• NPN Type Transistor: Ideal for positive voltage-based circuits, commonly used in high-speed switching and amplification.
• High Current Capability: Capable of handling up to 6A of continuous current, suitable for power amplification and driving loads.
• High Voltage Rating: Rated for up to 100V between the collector and emitter, making it versatile for various high-voltage applications.
• Good Gain: High current gain (hFE), which makes it efficient for amplifying signals.
• Thermal Stability: Built-in heat sink support for efficient heat dissipation during high-current operations, preventing thermal runaway.
• Widely Used: Often found in motor control, audio amplification, power regulation, and other high-current applications.

Specifications:

• Type: NPN Bipolar Junction Transistor (BJT)
• Collector-Emitter Voltage (Vceo): 100V
• Collector Current (Ic): 6A (continuous)
• Power Dissipation: 40W
• DC Current Gain (hFE): 40 to 320 (depending on the model)
• Package: TO-220 (through-hole mount)
• Operating Temperature Range: -65°C to 150°C
• Base-Emitter Voltage (Vbe): 5V max.
• Collector-Emitter Saturation Voltage (Vce(sat)): 2V max.

Limitations:

• Saturation Voltage: The Vce(sat) is typically around 2V, which can lead to power losses when the transistor is in the “on” state, especially in high-current circuits.
• Thermal Management: The transistor can generate significant heat under heavy loads, so appropriate heat sinking is required to prevent thermal damage.
• Current Handling Limit: While it handles up to 6A of continuous current, exceeding this limit can lead to transistor failure.

The TIP 41C NPN BJT Transistor is ideal for anyone working on projects that require power switching, signal amplification, or driving larger loads like motors. Its high voltage and current handling capability, combined with its reliability and thermal stability, make it an excellent choice for use in power electronics, audio amplification, and motor control systems.
