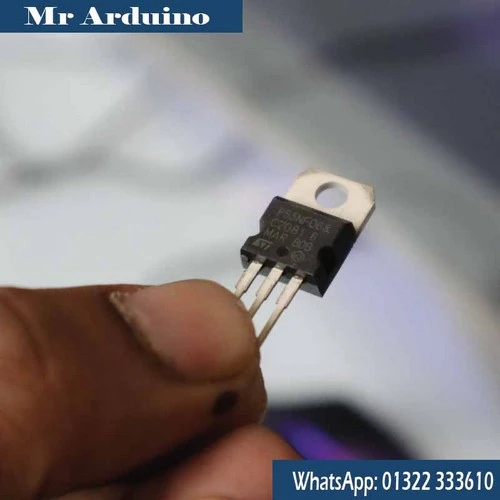

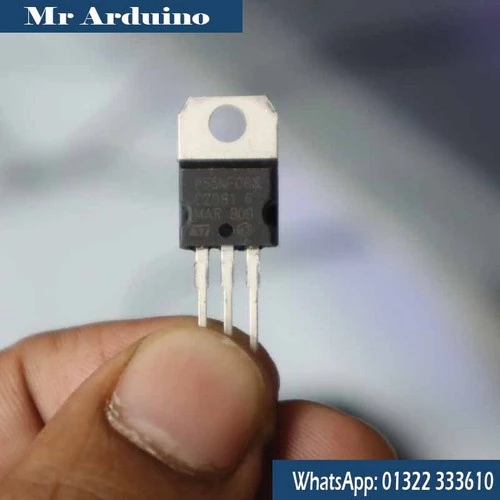

The P55NF06 is a robust N-channel Power MOSFET renowned for its high current handling and efficient switching capabilities. Developed using advanced processes, this MOSFET is widely utilized in various power electronics applications.

Key Specifications

• Drain-Source Voltage (V_DS): 60V
• Continuous Drain Current (I_D): 50A
• On-Resistance (R_DS(on)): 0.015Ω
• Gate Threshold Voltage (V_GS(th)): 4V
• Total Gate Charge (Q_g): 30nC
• Package: TO-220

These specifications make the P55NF06 suitable for high-power applications requiring efficient switching and low conduction losses.

Features and Benefits

• Low On-Resistance: The R_DS(on) of 0.015Ω ensures minimal power loss during conduction, enhancing overall system efficiency.

• High Current Capability: With a continuous drain current of 50A, the P55NF06 can handle substantial power loads, making it ideal for demanding applications.

• Fast Switching Speed: The device's design supports rapid switching, which is crucial for high-frequency applications.

• Thermal Efficiency: The TO-220 package offers efficient heat dissipation, allowing the MOSFET to operate effectively in high-temperature environments.


Common Applications

The versatility of the P55NF06 makes it suitable for a wide range of applications:

• Power Supplies: Utilized in switch-mode power supplies (SMPS) for efficient power conversion.
• Motor Drives: Employed in controlling motors in industrial and automotive settings.
• DC-DC Converters: Ideal for voltage regulation in various electronic devices.
• Automotive Electronics: Used in systems requiring high current handling and reliability.

Pin Configuration

The P55NF06 features a standard three-pin configuration:

1. Gate (G): Controls the MOSFET's switching state.
2. Drain (D): Current flows into this terminal.
3. Source (S): Current flows out from this terminal.

Proper gate drive voltage is essential to fully turn on the MOSFET and achieve optimal performance.

Equivalent Alternatives

For applications where the P55NF06 may not be available, the following MOSFETs can serve as substitutes:

• IRFZ44N: Similar voltage and current ratings.
• IRF540N: Offers comparable performance characteristics.
• IRLZ44N: Logic-level MOSFET with similar specifications.

When selecting an equivalent, ensure that the substitute meets the specific requirements of your application.

Conclusion

The P55NF06 N-channel Power MOSFET stands out for its high current capacity, low on-resistance, and efficient switching performance. Its adaptability across various applications makes it a reliable choice for engineers and designers in the field of power electronics.
