The IRF9540 is a P-channel power MOSFET renowned for its efficiency and versatility in various electronic applications. Manufactured by Vishay Siliconix, this MOSFET is designed to handle significant power levels, making it suitable for tasks such as switching regulators, motor drivers, and high-power amplifier circuits.

Key Specifications:

• Drain-Source Voltage (V_DS): -100V
• Continuous Drain Current (I_D): -19A at 25°C
• Pulsed Drain Current (I_DM): -72A
• Gate-Source Voltage (V_GS): ±20V
• On-Resistance (R_DS(on)): 0.20Ω at V_GS = -10V
• Total Gate Charge (Q_g): 61 nC
• Power Dissipation (P_D): 150W
• Operating Junction Temperature (T_J): -55°C to 175°C

These specifications highlight the IRF9540's capability to manage high voltages and currents, making it a robust choice for power-intensive applications. Its low on-resistance ensures minimal power loss, enhancing overall system efficiency.

Pin Configuration:

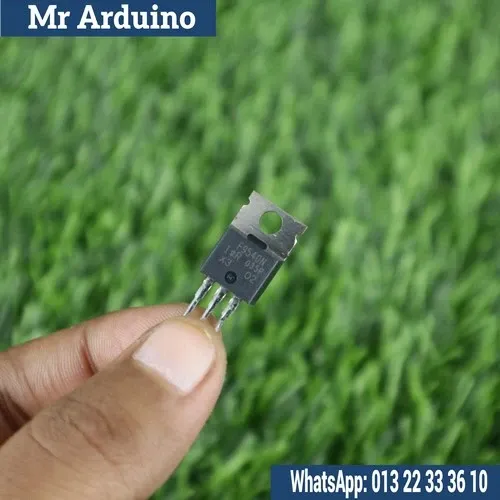

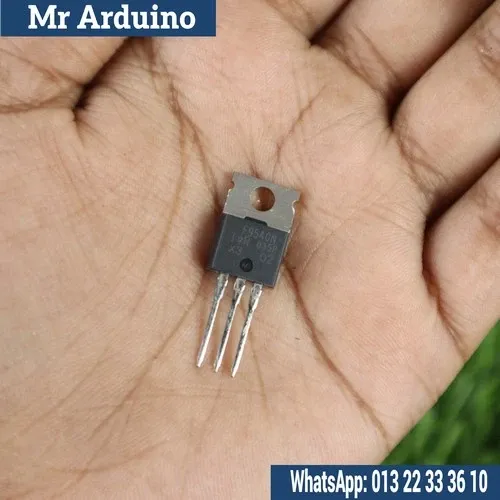

The IRF9540 is housed in a TO-220AB package with three pins:

1. Gate (G): Controls the MOSFET's switching state.
2. Drain (D): Current flows out through this pin when the MOSFET is on.
3. Source (S): Current enters through this pin.

Proper understanding of this pin configuration is crucial for integrating the MOSFET into circuits effectively.

Features and Benefits:

• Dynamic dV/dt Rating: Ensures reliable operation under rapid voltage changes.
• Repetitive Avalanche Rated: Enhances durability against voltage spikes.
• Fast Switching: Improves efficiency in high-speed applications.
• Ease of Paralleling: Simplifies configurations requiring multiple MOSFETs.
• Simple Drive Requirements: Facilitates straightforward interfacing with control circuits.

These features make the IRF9540 a preferred choice for designers seeking reliable and efficient power control components.

Applications:

The versatility of the IRF9540 allows it to be employed in various applications, including:

• Switching Regulators: Efficiently converting voltages in power supplies.
• Motor Drivers: Controlling motors in industrial and automotive systems.
• Relay Drivers: Operating relays in automation and control systems.
• High-Power Amplifiers: Enhancing signal strength in audio and communication devices.
• Battery Management Systems: Ensuring optimal charging and discharging cycles.

Its ability to handle high power and fast switching speeds makes it suitable for these demanding applications.

Availability and Alternatives:

As of recent updates, the IRF9540 has been marked as obsolete and is no longer in production. However, several substitutes are available, including:

• IRF9540PBF: A direct replacement with similar specifications.
• IRF9530NPBF: Offers a continuous drain current of -12A and on-resistance of 0.300Ω.
• FQP17P10: Features a drain-source voltage of -100V and continuous drain current of -17A.

These alternatives provide comparable performance and can be considered for new designs or replacements.

Conclusion:

The IRF9540 P-channel MOSFET has been a reliable component in various power control applications due to its robust specifications and versatile features. While it is now obsolete, designers have access to several suitable alternatives that continue to offer high performance in demanding applications.
