The BC557 is a widely utilized PNP (Positive-Negative-Positive) bipolar junction transistor (BJT) known for its versatility in amplification and switching applications within electronic circuits. Its ability to handle low current and voltage levels makes it a staple in various general-purpose electronic designs.

Key Specifications

• Transistor Type: PNP
• Package: TO-92 plastic package
• Maximum Collector-Emitter Voltage (V_CEO): -45V
• Maximum Collector-Base Voltage (V_CBO): -50V
• Maximum Emitter-Base Voltage (V_EBO): -5V
• Maximum Collector Current (I_C): -100mA
• Power Dissipation (P_tot): 500mW
• DC Current Gain (h_FE): Ranges from 125 to 800
• Transition Frequency (f_T): 100 MHz

These specifications highlight the BC557's capability to function effectively in low-power applications, making it suitable for tasks such as signal amplification and switching operations.

Pin Configuration

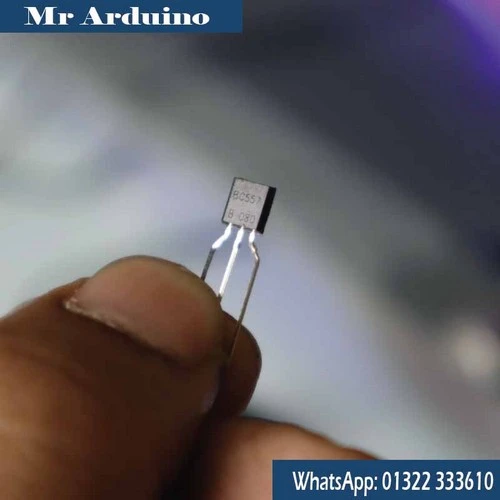

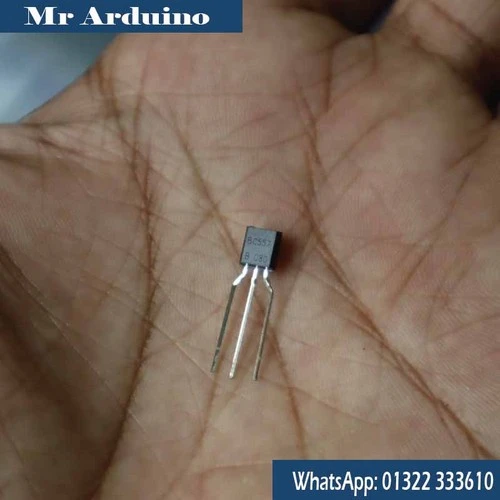

The BC557 transistor features a standard TO-92 package with three pins:

1. Collector (Pin 1): Current flows out through this pin.
2. Base (Pin 2): Controls the transistor's operation.
3. Emitter (Pin 3): Current flows into this pin.

Understanding the pin configuration is crucial for integrating the BC557 into electronic circuits correctly.

Applications

The BC557 transistor is employed in various applications due to its reliable performance and favorable electrical characteristics:

• Signal Amplification: Its high current gain makes it ideal for amplifying weak audio signals in devices like radios and audio amplifiers.

• Switching Applications: Capable of controlling loads up to 100mA, the BC557 is used in switching circuits to control relays, LEDs, and other components.

• Motor Control: Utilized in motor control circuits, particularly for small motors in consumer electronics, ensuring reliable and consistent operation.
• Robotics and Instrumentation: Plays a key role in robotics and instrumentation, where accurate electronic signal management allows for precise automated responses and movements.

Biasing and Operation

Proper biasing of the BC557 is essential to ensure it operates within its specified parameters and to prevent potential damage. When used as a switch, it operates in saturation and cut-off regions:

• Saturation Region: The transistor is fully on, allowing maximum current to flow from collector to emitter.
• Cut-off Region: The transistor is fully off, and no current flows through the collector-emitter path.

In amplification applications, the transistor operates in the active region, where it can linearly amplify the input signal. Ensuring the base current (I_B) is appropriately limited, typically not exceeding 5mA, is vital for the transistor's longevity and performance.

Complementary Components

The BC557 has NPN counterparts, such as the BC547, BC548, and BC549 transistors. These complementary pairs are often used in push-pull amplifier configurations and other circuits requiring both PNP and NPN transistors.
