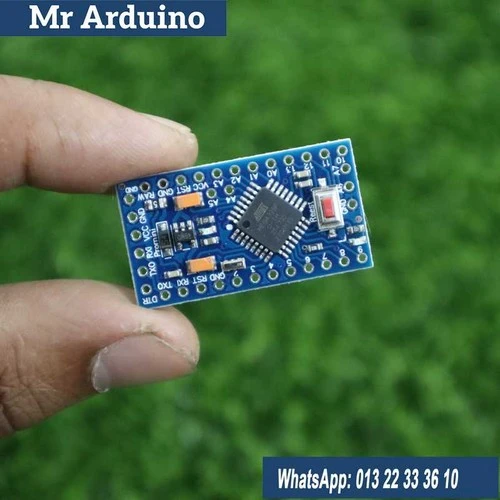

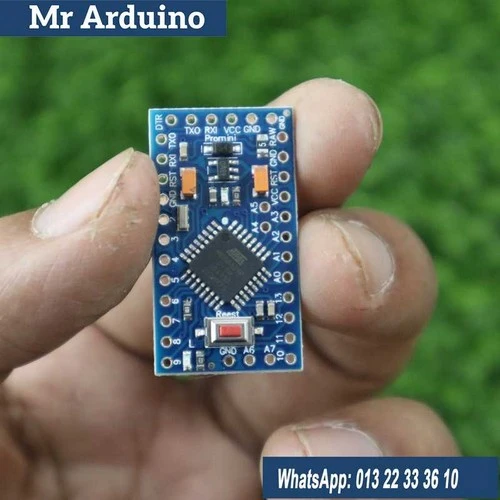

The Arduino Pro Mini is a small, lightweight, and versatile microcontroller board based on the ATmega328P. It is a compact version of the popular Arduino Uno, designed for applications where space is limited or when a more cost-effective solution is needed. With its small size and powerful features, the Arduino Pro Mini is ideal for embedded systems, DIY electronics projects, and applications that require low power consumption.

How It Works:

1. Microcontroller: The heart of the Arduino Pro Mini is the ATmega328P microcontroller, which runs the code uploaded from your computer. It processes input signals from sensors or buttons and can send output signals to devices like LEDs, motors, and other peripherals.
2. Programming: The board is programmed via the Arduino IDE (Integrated Development Environment). You connect the Pro Mini to your computer using an FTDI (or USB-to-serial) adapter, and upload the program to the microcontroller.
3. Input and Output Pins: The board has 14 digital I/O pins (6 of which can be used as PWM outputs) and 6 analog input pins. These pins allow you to interface with various sensors, actuators, and communication modules.
4. Power Supply: The Arduino Pro Mini operates on either a 5V or 3.3V power supply, and it can be powered via a USB-to-serial adapter or an external battery, making it suitable for portable projects.
5. Communication: The Pro Mini can communicate with other devices through serial communication (UART) or I2C, making it ideal for networking multiple microcontrollers or connecting to sensors and peripherals.

Features:

• Compact Design: The small form factor (18mm x 33mm) makes it perfect for projects where space is limited.
• Low Power Consumption: It is designed for low power use, making it ideal for battery-powered applications and energy-efficient projects.
• Versatile I/O: The board provides 14 digital I/O pins and 6 analog inputs, offering flexibility for a wide range of sensors, actuators, and other modules.
• Bootloader Included: The board comes with the Arduino bootloader pre-installed, making it easy to program via serial communication without the need for an external programmer.
• Multiple Voltage Options: Available in both 5V and 3.3V versions, giving you more options for interfacing with different systems.
• Wide Compatibility: Works with most Arduino shields and compatible modules, making it a great choice for a variety of applications.

Limitations:

• No USB Port: Unlike the Arduino Uno, the Pro Mini does not have a built-in USB interface. You need a USB-to-serial adapter (FTDI) for programming and communication with a computer.
• Limited Memory and Processing Power: The ATmega328P has limited RAM and flash memory (32KB of flash, 2KB of SRAM), which can be restrictive for larger or more complex programs.
• No Onboard Voltage Regulator (for some versions): Some versions of the Pro Mini require an external voltage regulator when using the 5V version, which may add to the complexity of the setup.
• Smaller Pin Spacing: The small size can make it harder to work with in terms of prototyping, especially if you're using a breadboard. Pin headers may also be smaller than standard Arduino boards.

The Arduino Pro Mini is perfect for small, low-power projects, embedded systems, and situations where size and cost are critical factors. It’s widely used by hobbyists and engineers alike for everything from simple sensors to complex automation systems.
