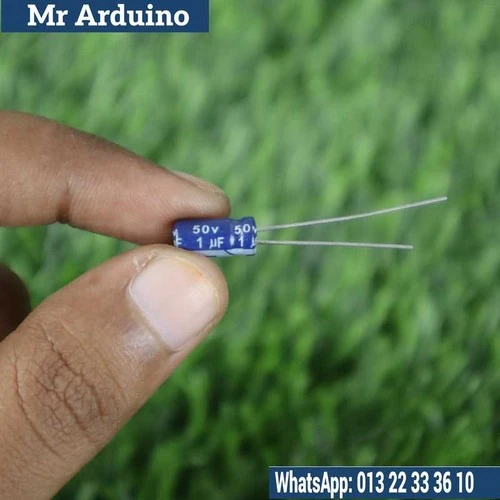

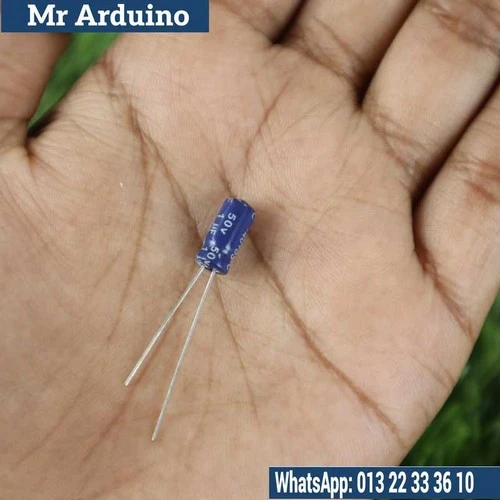

The 50V 1uF Electrolytic Capacitor is a compact, high-performance component designed for use in circuits that require small capacitance and higher voltage tolerance. With a capacitance of 1µF and a rated voltage of 50V, this capacitor is perfect for applications such as filtering, voltage regulation, smoothing, and signal processing, especially in systems that operate at higher voltages.

Being an electrolytic capacitor, it features a polarized design, meaning it must be connected with the correct polarity (positive lead to the higher voltage side) to avoid malfunction or failure.

Key Features:

• Capacitance Value: 1µF, suitable for applications requiring small capacitance values and higher voltage handling.

• Rated Voltage: 50V DC, perfect for circuits that operate at voltages up to 50V.

• Polarized Design: Proper installation with correct polarity is essential to prevent damage and ensure the capacitor works as intended.

• Compact Form Factor: Despite its high voltage rating, this capacitor maintains a small size, making it ideal for use in space-constrained designs.

• Durability: Designed for long-lasting operation in a wide range of applications, providing stable and reliable performance.

How It Works: The 50V 1uF Electrolytic Capacitor stores electrical energy between its two electrodes, with the dielectric material separating them. When voltage is applied, the capacitor charges up, storing energy in the form of an electric field. It then discharges the energy when needed, helping to stabilize the circuit's voltage.

In power supply circuits, this capacitor is used to smooth out ripple and maintain a steady DC voltage output. It also functions to filter high-frequency noise in signal processing circuits, allowing only the desired signals to pass through while blocking unwanted components.

Applications:

• Power Supply Filtering: Used in DC power supplies to reduce voltage ripple, providing a smooth and stable DC output to sensitive electronic components.

• Voltage Regulation: Helps stabilize voltage levels in circuits such as DC-DC converters and voltage regulators.

• Audio Circuits: Commonly used in audio applications, including audio filters and amplifiers, to block DC components while allowing AC (audio) signals to pass through, improving sound quality.

• Signal Coupling: Effective in signal processing circuits to block unwanted DC signals while allowing desired AC signals to pass through.

• Energy Storage: Provides moderate energy storage for circuits that require small capacitance but stable voltage.

Specifications:

• Capacitance: 1µF (microfarads)

• Rated Voltage: 50V DC

• Tolerance: ±20% (standard tolerance for electrolytic capacitors)

• Temperature Range: Typically -40°C to +85°C (verify datasheet for exact range)

• Type: Electrolytic, Polarized

• Mounting Style: Radial or Axial (depending on variant)

• Lead Spacing: Typically 5mm or 7.5mm (check datasheet for exact dimensions)

Limitations:

• Polarized: Proper polarity must be observed during installation. Reversing polarity can cause the capacitor to fail or leak.

• Voltage Rating: The maximum rated voltage is 50V. Applying a higher voltage than this can result in capacitor failure.

• Lifespan: Electrolytic capacitors tend to degrade over time, especially under conditions of high voltage and temperature, leading to reduced capacitance and increased leakage.

• Size: Although compact, this capacitor might still be too large for some highly space-constrained applications.
