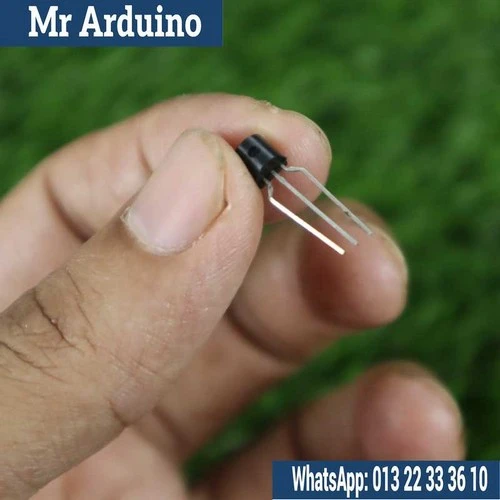

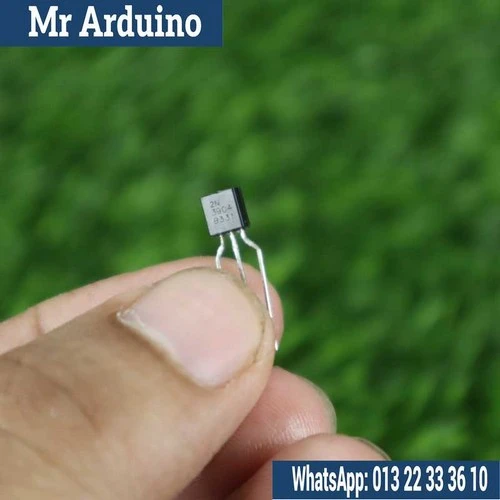

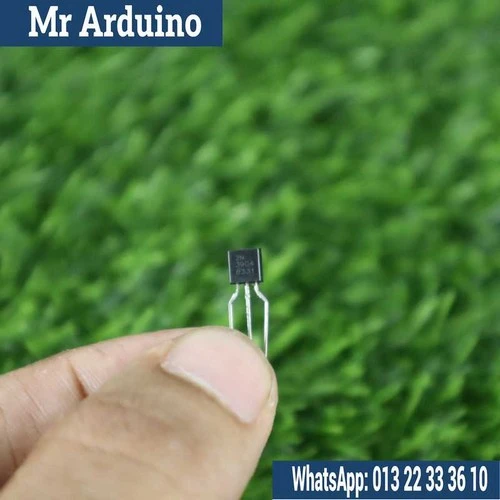

The 2N3904 is a widely used NPN bipolar junction transistor (BJT), commonly employed in low-power switching and amplification applications. It is a general-purpose transistor with a small form factor and is frequently used in electronic circuits for tasks such as signal amplification, switching, and current regulation. The 2N3904 is known for its reliability, ease of use, and availability, making it an ideal choice for hobbyists, students, and professionals working with low-power devices.

How It Works: The 2N3904 operates as an NPN transistor, meaning it has three regions: the emitter, base, and collector. When a small current is applied to the base, it allows a larger current to flow between the collector and emitter. This makes it suitable for amplification applications, where a small input signal is boosted to a larger output signal.

In a typical switching application, the 2N3904 can be used to turn on or off the flow of current through a load. When a sufficient current is supplied to the base, the transistor enters saturation mode and allows a current to flow freely between the collector and emitter. When no base current is provided, the transistor is in cutoff mode, and current flow between the collector and emitter is blocked.

Key Features:

• NPN Transistor: A standard NPN transistor for general-purpose use, commonly found in low-power applications.
• Small Size: The 2N3904 has a compact, through-hole package, making it suitable for breadboarding and integration into small circuits.
• Versatile Applications: Ideal for switching, amplification, and signal processing tasks in low-power electronics.
• High Current Gain: It offers a high hFE (DC current gain), allowing it to efficiently amplify small input currents.
• Low Power Loss: The 2N3904 operates with minimal power loss, making it efficient for low-power applications.
• High-Speed Switching: Capable of switching signals at high frequencies, often used in digital circuits.
• Wide Range of Applications: Can be used in a variety of circuits, including audio amplifiers, switching circuits, digital logic circuits, and more.

Specifications:

• Type: NPN BJT (Bipolar Junction Transistor)
• Collector-Emitter Voltage (Vce): 40V (maximum)
• Collector-Base Voltage (Vcb): 60V (maximum)
• Emitter-Base Voltage (Vbe): 5V (maximum)
• Continuous Collector Current (Ic): 200mA (maximum)
• DC Current Gain (hFE): 100 to 300 (depending on the operating conditions)
• Power Dissipation (Pd): 625mW
• Transition Frequency (ft): 250MHz (typical)
• Package Type: TO-92 (standard leaded package)

Limitations:

• Low Current Handling: The 2N3904 is suitable for low-power applications, but its current-handling capability (200mA maximum) is limited. It should not be used in circuits that require higher current, such as motor drivers or high-power switching.
• Moderate Voltage Rating: The voltage rating of the 2N3904 is 40V, which is sufficient for many low-voltage circuits but not suitable for high-voltage applications.
• Not Ideal for Power Switching: For high-power switching, a power transistor or MOSFET would be more appropriate, as the 2N3904 is not designed to handle large power loads.

The 2N3904 Transistor is an excellent choice for general-purpose applications in electronics, providing reliable switching and amplification in low-power circuits. Whether you're building simple amplifiers, digital logic circuits, or basic switching circuits, the 2N3904 offers a versatile, cost-effective solution.
