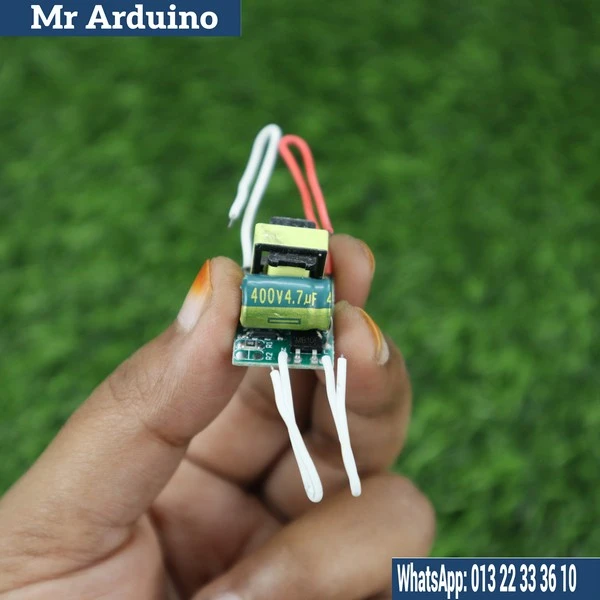

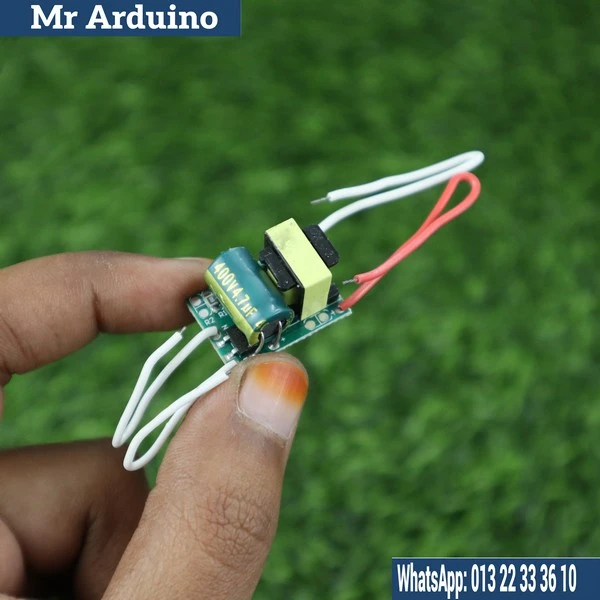

The 20W LED Driver 100V DC is a compact and reliable power supply unit designed specifically for driving LED lighting systems that require DC voltage. With an output power of 20 watts and a 100V DC rating, this driver is ideal for powering high-voltage LED arrays, light strips, or other LED-based lighting applications. The driver ensures the safe and efficient operation of LEDs by providing stable and consistent power, preventing overvoltage and current fluctuations that could damage the LEDs.

Features:

• Power Output: 20W, providing the necessary energy for low-power LED applications.

• Voltage Rating: 100V DC, designed for high-voltage LED configurations (such as those used in commercial or industrial lighting).

• Compact Design: Small form factor that can be easily integrated into various lighting fixtures or systems.

• Efficient Power Conversion: Converts AC or DC input voltage into a constant DC output suitable for powering LEDs.

• Overvoltage and Overcurrent Protection: Ensures that the LEDs are protected from damaging electrical conditions by stabilizing the power supply.

• Wide Application Range: Suitable for powering high-voltage LED strips, arrays, or other LED systems in residential, commercial, or industrial settings.

• Heat Dissipation: Designed to handle and dissipate heat efficiently, ensuring long-term reliability and performance.

How It Works:

The 20W LED Driver 100V DC operates by converting an input voltage (typically AC or low DC) into a stable, regulated DC output of 100V to power LED lights. The driver ensures that the voltage and current provided to the LEDs are consistent, preventing damage from voltage spikes or current fluctuations:

1. Input Power: The driver receives power, usually from an AC source (via a rectifier) or a DC source.

2. Power Conversion: The driver uses internal circuitry to convert and regulate the input power to a steady 100V DC output, providing the correct voltage and current needed to safely power LEDs.

3. Constant Output: The driver ensures a constant current output, stabilizing the power supply to prevent flickering or fluctuations in brightness.

4. Protection: Integrated features like overcurrent and overvoltage protection help protect the LEDs and other circuit components from damage due to power irregularities.

Product Limitations:

• Compatibility: This driver is rated for 100V DC output, so it is suitable only for high-voltage LED systems. It is not compatible with low-voltage LED applications (usually 12V or 24V).

• Power Rating: With a 20W output, it may not be suitable for high-power LED systems requiring more wattage. Ensure your LED setup matches the driver’s power capacity to avoid underperformance.

• Temperature Sensitivity: LED drivers can be sensitive to high operating temperatures. If not properly ventilated, the driver may overheat, potentially reducing its lifespan.

• Input Voltage Range: Make sure the input voltage falls within the driver’s specified range to prevent damage or malfunction.

Applications:

• LED Lighting Systems: Commonly used in LED strips, LED arrays, and high-voltage LED fixtures for commercial and industrial applications.

• Residential Lighting: Can be used in high-voltage LED lights for home lighting systems, including chandeliers, spotlights, or recessed lighting.

• Outdoor Lighting: Suitable for outdoor high-voltage LED lighting systems like floodlights and garden lights.

• Display and Signage: Perfect for LED-based signage or display systems that require a steady DC power supply.

The 20W LED Driver 100V DC is an essential component for ensuring the efficient and reliable operation of high-voltage LED lighting systems. With its ability to regulate and stabilize voltage, this driver prevents damage to LEDs and provides consistent, flicker-free lighting in a variety of applications.
