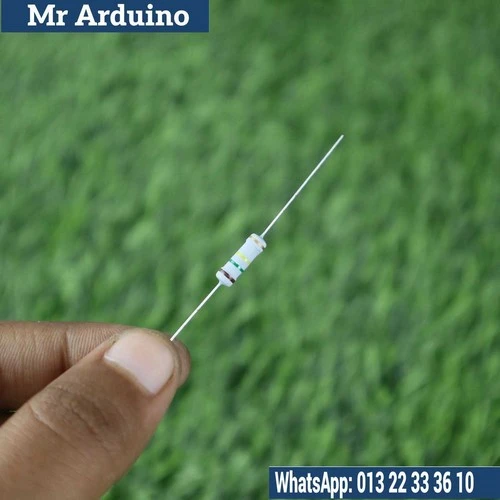

The 150K Ohm 1 Watt Resistor is a high-resistance, high-power electronic component designed for use in circuits that require precise current control and power dissipation. With a resistance value of 150K Ohms (150,000 Ohms) and a power rating of 1 Watt, this resistor is perfect for high-impedance applications and circuits that need to handle moderate power levels while maintaining a high resistance to limit current flow. It's commonly used in voltage divider circuits, signal conditioning, and high-impedance applications.

How it Works: The 150K Ohm 1 Watt Resistor limits the flow of electrical current in a circuit by introducing resistance, which causes a voltage drop according to Ohm's Law (V = I * R). The 150K resistance value ensures that very little current flows through the circuit, making it ideal for high-voltage or high-impedance circuits. The 1-watt power rating ensures that the resistor can safely dissipate up to 1 watt of electrical power as heat, making it suitable for circuits that have moderate power requirements.

Specifications:

• Resistance: 150K Ohms (150,000 Ohms)

• Power Rating: 1 Watt

• Tolerance: Typically ±5% (check product for exact tolerance)

• Material: Carbon Film or Metal Film (depends on the variant)

• Size: Standard 1-watt size for general-purpose applications

Applications:

• Voltage Dividers: Frequently used in voltage divider circuits to create lower voltages from higher voltage sources, especially in precision circuits.

• High-Impedance Circuits: Ideal for high-impedance applications where current needs to be restricted without causing significant voltage drops.

• Signal Conditioning: Used in audio, analog, and RF circuits to adjust, filter, or stabilize signals.

• Current Limiting: Used in series with components like LEDs, diodes, or transistors to limit current and prevent damage.

• Pull-up/Pull-down Resistors: Often used as pull-up or pull-down resistors in digital circuits, where high resistance is necessary to set logical states.

Limitations:

• Power Rating: The 1-watt power rating should not be exceeded. Overheating can occur if the resistor is forced to dissipate more power than it is rated for.

• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from the nominal value of 150K Ohms, which could affect the accuracy of the circuit in applications requiring high precision.

The 150K Ohm 1 Watt Resistor is ideal for high-impedance applications, voltage dividers, signal conditioning, and circuits requiring current limiting at moderate power levels.
