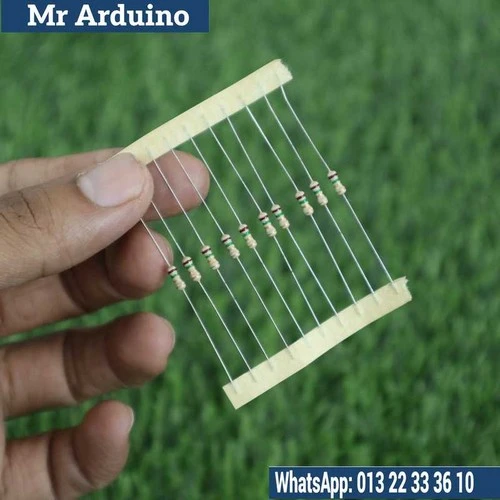

The 1.5 Ohm Resistor Quarter Watt 0.25W is a low resistance resistor with a resistance value of 1.5 ohms and a power rating of 0.25 watts (quarter-watt). This resistor is designed for low-power applications where precise current control is needed. Due to its low resistance value, it is commonly used in current-limiting applications, voltage dividers, and shunt resistors. The 0.25W power rating ensures it can safely dissipate up to 0.25 watts of power without overheating.

The 1.5 ohm resistance allows this component to limit current or provide a small voltage drop in various electrical circuits. Its compact size and affordable cost make it ideal for a variety of hobby electronics, DIY projects, and power-sensitive devices that need current regulation in low-power circuits.

Key Features:

• Resistance Value: 1.5 ohms, ideal for low-resistance applications such as current sensing, shunt resistors, and current limiting in low-power circuits.
• Power Rating: 0.25W (quarter-watt), making it suitable for use in low-power applications where power dissipation is minimal.
• Tolerance: Available with ±5% tolerance (standard) or ±1% tolerance (high precision), indicating the range of variation from the nominal resistance value.
• Compact Size: The quarter-watt size makes it small and easy to integrate into compact circuit designs, making it perfect for sensitive circuits.
• Material: Typically made from carbon film or metal oxide, these materials ensure consistent resistance over time, providing reliable performance for low-power projects.

How It Works: The 1.5 Ohm Resistor Quarter Watt 0.25W works by restricting the flow of electrical current through a circuit, creating a voltage drop across its terminals. According to Ohm’s Law (V = IR), the amount of current that passes through the resistor depends on the applied voltage and the resistance value. A 1.5-ohm resistor will limit the current based on the voltage applied to the circuit.

For example, if a 5V voltage is applied to this resistor, using Ohm’s Law (V = IR), the current flowing through the resistor would be:

$$I=\frac{V}{R}=\frac{5V}{1.5\mathrm{\Omega }}=3.33A$$

This shows that in circuits where current needs to be limited, this resistor provides a low resistance path, ensuring that high current is not drawn through the circuit.

The 0.25W power rating ensures that this resistor can handle the heat generated by the current without exceeding safe limits. If the power dissipation exceeds 0.25W, the resistor could overheat and be damaged.

Applications:

• Current Sensing: The 1.5 ohm resistor can be used as a shunt resistor to measure the current flowing through a circuit. The small voltage drop across the resistor can be measured to calculate the current (based on Ohm’s Law), making it ideal for current-sensing in battery-powered devices or low-power systems.
• Current Limiting: This resistor can be used to limit the current in circuits such as LED protection, charging circuits, and low-power electronics, preventing excessive current from damaging sensitive components.
• Power Regulation: In voltage dividers or load regulation circuits, the 1.5-ohm resistor is used to provide voltage drops or to adjust the current within specific ranges in power supply systems.
• Audio Applications: Can be used in audio circuits to limit current flow or to ensure proper signal levels in amplifiers and speaker systems.
• Overload Protection: Often used in protective circuits to safeguard sensitive devices from current surges or short circuits by limiting the flow of excessive current.
• Battery-Powered Systems: Ideal for battery-powered electronics where efficient power management is needed, and current regulation is required to ensure safe operation.

Limitations:

• Low Power Rating: The 0.25W power rating limits this resistor to low-power applications. It is unsuitable for high-current circuits or those that require significant power dissipation. Using this resistor in a high-power circuit may cause it to overheat and fail.
• Current Handling: Due to its low resistance, the 1.5 ohm resistor may not be suitable for circuits where high resistance is required, as it will allow higher current to flow through the circuit.
• Tolerance Variability: Depending on the tolerance (usually ±5%), the actual resistance value may differ slightly from the nominal value, potentially affecting precision in highly sensitive applications. For more accurate applications, resistors with a lower tolerance (such as ±1%) can be used.

The 1.5 Ohm Resistor Quarter Watt 0.25W is an important component in low-power applications, where current limiting, current sensing, or voltage regulation is necessary. Its low resistance value makes it ideal for circuits where precise control over current is required, and its compact size ensures it can fit into small, space-constrained designs. Whether you're working on a battery-powered project, an audio circuit, or a low-power electronics design, this resistor is a versatile and essential component for safe and efficient operation.
