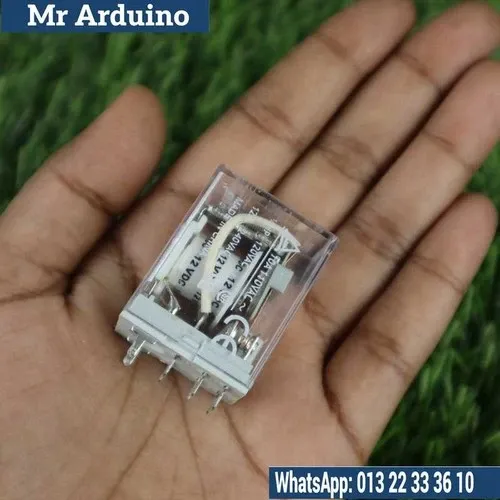

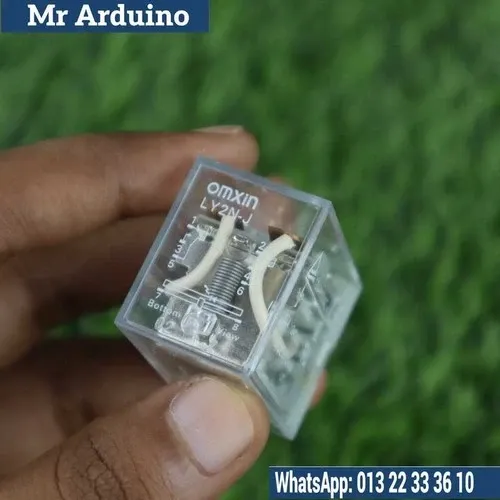

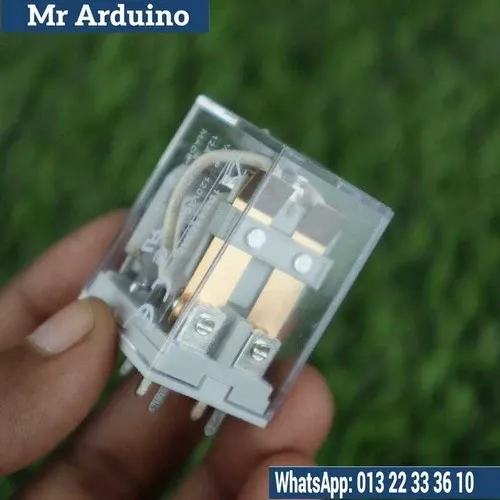

The 12V DC 8 Pin Glass Relay is a high-quality electromagnetic relay designed for use in a variety of electronic and electrical applications. Operating at a 12V DC control voltage, this relay uses an 8-pin configuration to provide reliable switching capabilities. The glass encapsulation ensures durability, protection, and reliability by shielding the internal components from environmental factors such as moisture and dust.

This relay is commonly used for controlling high-voltage circuits with a low-voltage control signal, making it ideal for applications in automotive systems, industrial control, home automation, and electronic projects. The 8-pin configuration allows for more versatile control, enabling multiple connections for switching tasks.

Key Features:

• Control Voltage: 12V DC

• Configuration: 8 Pins (Standard pinout for versatile connections)

• Encapsulation: Glass relay, offering protection and enhanced durability

• Contact Type: SPDT (Single Pole Double Throw) or SPST (Single Pole Single Throw), depending on model

• Switching Capacity: Suitable for switching both low and high-current applications

• Durability: Long-lasting, reliable switching performance in a wide range of environments

• Compact design ideal for tight spaces or space-constrained applications

Applications:

• Automotive electrical systems for controlling lights, motors, or other devices

• Industrial control systems for switching heavy-duty equipment or machinery

• Home automation systems to control various electrical appliances

• General-purpose switching in low-voltage circuits to control high-voltage systems

• Prototyping and DIY electronics projects for controlling larger power systems

How It Works: The 12V DC 8 Pin Glass Relay operates through electromagnetic principles. When a 12V DC voltage is applied to the coil, it creates a magnetic field that attracts or repels an internal armature, which opens or closes the contacts. This allows the relay to switch high-voltage or high-current devices with a much lower control voltage. The glass encapsulation keeps the internal components secure and protected from external elements, ensuring the relay functions reliably in various environments. The 8 pins provide flexibility in wiring for different circuit configurations, making it a versatile choice for numerous applications.

Product Limitations:

• Voltage Rating: The relay should not exceed its rated control voltage of 12V DC to avoid damage to the coil or contacts.

• Current Rating: The relay’s switching contacts should not exceed the maximum current and voltage ratings specified for the device, as this may cause contact wear or failure.

• Temperature Sensitivity: Like all relays, the 12V DC 8 Pin Glass Relay may experience performance degradation if exposed to extreme temperatures outside its rated range.

This relay is perfect for applications that require controlled switching and is especially useful in automotive, industrial, and DIY electronics.
